Part 3: Querying the Embeddings

This is the third part in a series that covers how I created a custom search engine for Steam games using embeddings.

At this point, we have a database of embeddings for Steam game descriptions and reviews. We now need to do a bit of a ‘spot check’ to make sure that querying the embeddings with a game description actually works, and works well enough to be useful.

Source for this section: Available on GitHub

How to Query the Embeddings?

The first challenge is figuring out the implementation details of actually searching through the database. We want some kind of measure of ‘closeness’ between two embeddings, so that we can find the closest match for any given query. The method I’ve chosen to use here is called cosine similarity.

Google has some educational material discussing some alternatives you can use, but I was most familiar with cosine similarity, so I went with that. It’s easy enough to swap out for something else later if I want to.

Cosine Similarity

Cosine similarity essentially measures the ‘angle’ between two vectors, or embeddings. The closer the angle is to 0, the more similar the two vectors are. The resulting value is between -1 and 1, with 1 being the most similar.

This isn’t a math blog, so I won’t go into the details of how it works, but you can read more about it here. All that you really need to know is that you can use it to measure the similarity between two embeddings.

If you’re using PyTorch, you can use the torch.nn.functional.cosine_similarity function to calculate the cosine similarity between two tensors. You can also implement it yourself pretty easily in numpy:

import numpy as np

def cosine_similarity(a: List[float], b: List[float]) -> float:
    return np.dot(a, b) / (np.linalg.norm(a) * np.linalg.norm(b))

Now all we have to do is take in a query, convert it to an embedding, then calculate the cosine similarity between that embedding and every other embedding in the database.

But Steam reviews can be a little noisy as far as data goes. It’s not uncommon for meme/joke reviews that don’t discuss much of the actual game to be the top review for a given game. It’s tempting to try and filter those kinds of reviews out, but I think there’s an easier solution.

An individual review can highlight some unique aspects of a game while leaving other information out. Instead of looking at reviews individually, how can we combine all of the reviews for a game into a single embedding that might better represent the game as a whole?

Mean Pooling

Mean pooling is a fancy name for creating a new embedding where each dimension is the mean (average) of the corresponding dimension of all of the embeddings you’re combining. It’s what I would think of as ‘getting the average’ of a bunch of embeddings.

In terms of Python code, it’s pretty simple:

import numpy as np

def mean_pooling(embeddings: List[List[float]]) -> List[float]:
    # Option 1
    return np.mean(embeddings, axis=0)

    # Option 2
    return np.sum(embeddings, axis=0) / len(embeddings)

Surprisingly, this does pretty much what you’d expect it to. It takes the ‘meaning’ of all the embeddings and combines them into a single embedding that represents the whole. You can weight the embeddings differently if you want, too. But in our case since we can’t know which review is more important than another, we’ll just use the mean.

Indexing the Embeddings

At this point in development, my database is only populated with the embeddings for ~10,000 game descriptions and reviews. Doing a O(N) search through the whole thing took just 3 seconds, which was fast enough for me to not worry about making searching faster.

However, once the database is fully populated that will no longer be the case. So how do you search through… 150,000 games * (1 game description embedding + 45 reviews on average per game) = 6,900,000 embeddings without looking at each one individually?

FAISS

FAISS, or “Facebook AI Similarity Search”, is a library that can be used to create indexes for embeddings. It’s designed to be used with embeddings generated by neural networks, which just so happens to be exactly what we’re using.

The tutorial I followed to learn how to use FAISS was the Pinecone tutorial Introduction to Facebook AI Similarity Search (Faiss). It builds knowledge from the ground up in an intuitive way, and I highly recommend it if you’re interested in learning more about how searching can be done quickly.

As of the time of writing, I haven’t yet added the index to my project, but I will be doing so soon. I suspect it will be pretty straightforward. If I have any additional thoughts on it, I’ll add them here.

Update (2023-12-28)

I’ve now implemented embedding indexing into the project, and unfortunately I wasn’t able to use FAISS to do it.

The issue ultimately came down to installation of the library. FAISS can only be installed via conda. There isn’t any way to install the library without conda installed.

There is an outdated pip library that might work, but I’m weary of using unmaintained libraries.

Up to this point, I had been using venv to setup and manage the environment of each step of this project, which uses pip to install packages.

I made a brief attempt at creating a conda setup script for this step so that I could install FAISS. I was working on this when I discovered hnswlib and saw that it was available natively via pip, so I decided to try using that instead.

Hnswlib

This section was added after the initial publication of this post.

Hnswlib is a library that does much the same thing as FAISS. It implements a quick nearest-neighbor search algorithm that can be used to create an index for embeddings. Now that I’ve successfully deployed the index to a cloud machine, I thought I’d write about my experience using it.

After spending a few hours tweaking the parameters, I was able to get 90%+ recall accuracy on my completed database. The database contains about 100,000 unique game description embeddings and about 75,000 unique review embeddings (after mean pooling reviews with the same appid). I created an index for each of those separately, which takes about 15 ms to query in total on my Ryzen 7 5800X.

Setting up Hnswlib requires you to experiment with your dataset to find the best M and ef parameters. The math-style variable names did hinder my understanding a bit as I was learning things. Thankfully, descriptions of what everything means can be found in the Hnswlib GitHub repository.

To help discover the parameters that worked best for my dataset, I made a Jupyter notebook to interactively tweak the parameters until I got good enough results. You can hopefully check out that notebook here (if I haven’t accidentally moved it somewhere else).

Spot Check

With the implementation finally complete, I was able to check the results for the first time. I was a little disappointed, but not surprised, to find that the results were not amazing. Let’s take a look at some examples.

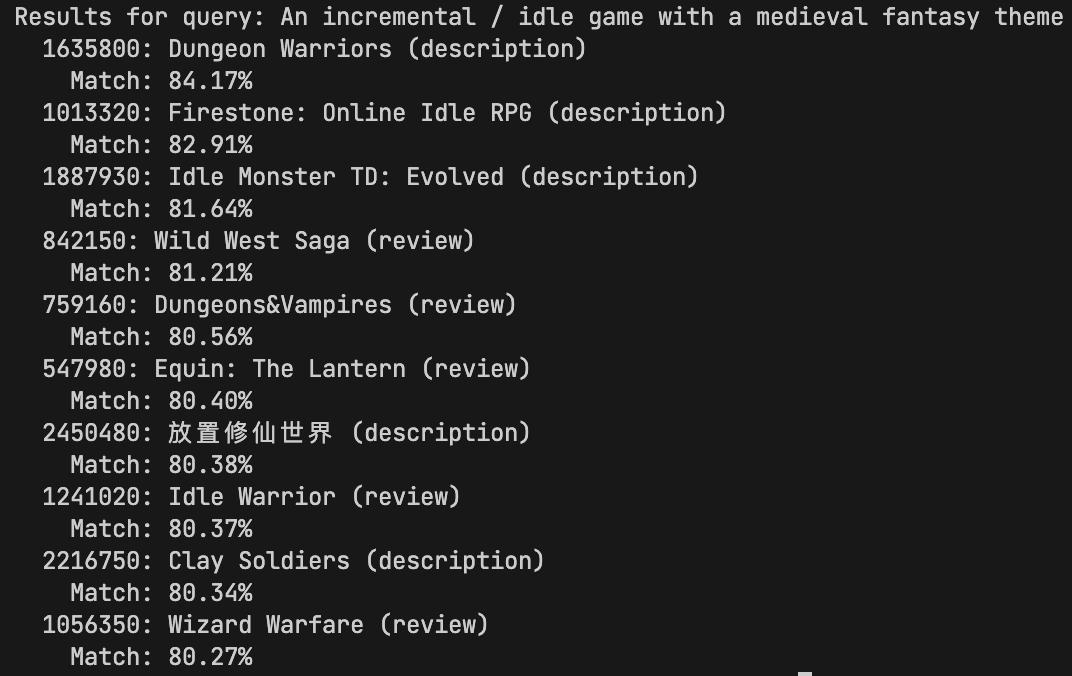

Query 1 - “An incremental / idle game with a medieval fantasy theme”

Here are the links to the games in the above image so you can evaluate the results for yourself.

Results Table (click to expand)

Title	Banner	Description
Dungeon Warriors		It is a 3D RPG idle game. The game integrates RPG elements, with skill system, achievement system and very rich equipment system, so that players can experience diversified role-playing fun.
Firestone: Idle RPG		Firestone: Online Idle RPG is a multiplayer fantasy game with idle rpg mechanics. Collect heroes🧙‍♂️, upgrade their gear & skills, and sent them in idle battles or go on an incremental clicker frenzy to beat monstrous bosses! Chat with guild friends or engage in PVP⚔️- the choice is in your hands!
Idle Monster TD: Evolved		Evolve epic monsters and crush puny humans in this endless idle tower defense game! Unlock, upgrade, and evolve over 150 unique monsters and pets, ranging from cute and colorful flower creatures to epic fire breathing dragons, to assemble the ultimate team against the endless waves of enemies.
Wild West Saga		Wild West Saga is an idle game where you click to make money and build a business fortune! Hundreds of Towns to explore and Patent Cards to collect, dozens of Businesses to upgrade and Outlaws to hire. The end goal? To become the richest Pioneer in the Wild West! So, are you up for it?
Dungeons&Vampires		Dungeons & Vampires- addictive step-by-step role-playing role-playing Roguelike-game with a gothic atmosphere, combining Dungeon Crawler and Clicker mechanics. Teach your hunters to vampires, clearing the way through dangerous procedurally-generated dungeons.
Equin: The Lantern		Equin: The Lantern is a challenging roguelike that’s easy to get into but tough to master. Conquer the huge 50 floor dungeon and its evil inhabitants in a quest to the bottom of the joint to find the mysterious lantern itself.
放置修仙世界 (Idle Magic Legend)		Team up to kill monsters and explode equipment. Through the program, thousands of people practice, make friends, and get married. You can also participate. You can become friends with her and learn magic together. Bring your dog to battle
Idle Warrior		Idle Warrior is a little idle/clicker game in which you play an warrior who has to fight against an unlimited number of enemies.
Clay Soldiers		The war rages on, choose to side with the Mercenaries, the Undead, the Angels, and more! Play through the single-player campaign, unifying the factions. Fight against other players and AI in the battleground’s mode! Or strive for a conquest that takes you through the ages in war mode.
Wizard Warfare		Wizard Warfare is a fantasy-themed, 4X-style, turn-based strategy game with a strategic empire management layer supported by a detailed tactical battle simulation layer.

Looking at the top results, things seem to at least match up pretty well. They’re at least idle games. But starting about halfway down the list of results, things start to get a little weird. We take a slight detour into turn based roguelikes before another idle game, and wrapping up with some strategy games.

At this point, it’s clear there’s at least some promise here. But it’s hard to tell if the poor results are a result of the model, the implementation, or the lack of data in the dataset. Let’s try some more queries.

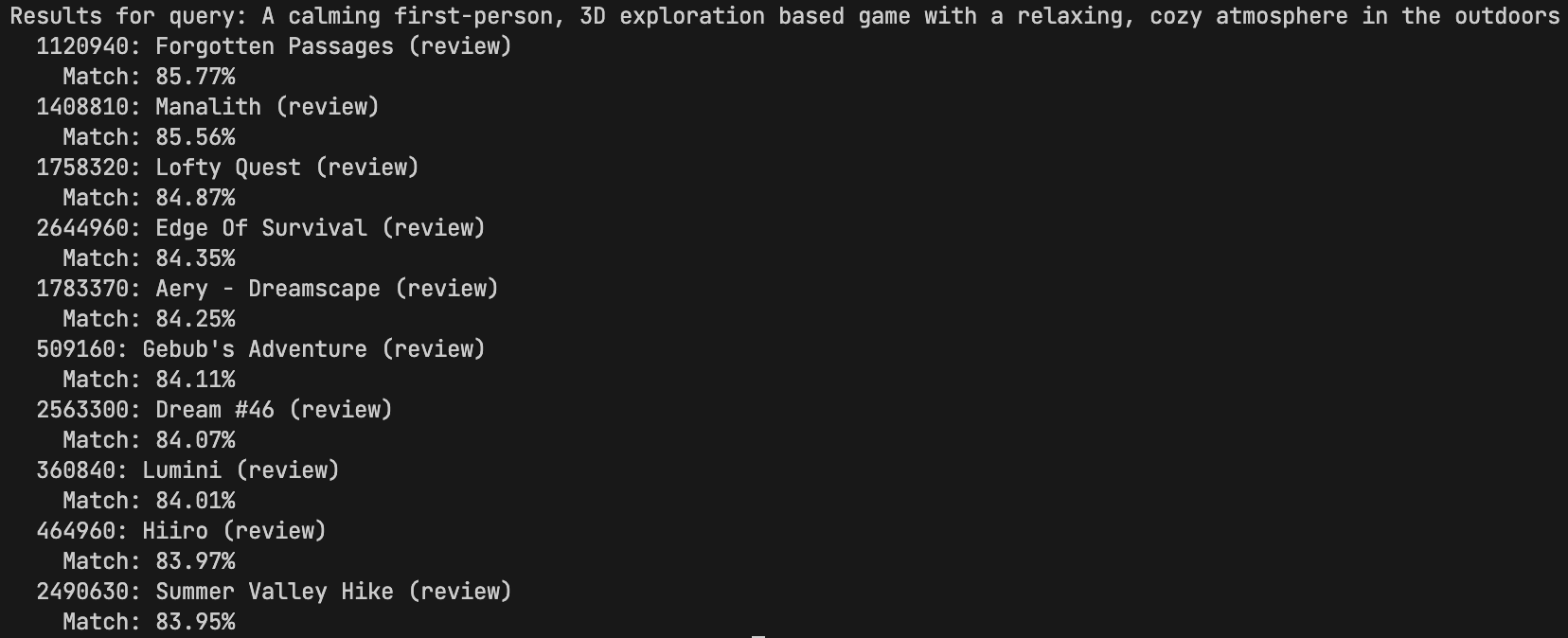

Query 2 - “A calming first-person, 3D exploration based game with a relaxing, cozy atmosphere in the outdoors”

Results Table (click to expand)

Title	Banner	Description
Forgotten Passages		100 Tiny Levels. Stumble down a surreal rabbit hole and explore an atmospheric world composed of one hundred visually rich dreamscapes. This micro adventure takes about one hour to play straight through. Follow a girl and a mysterious bird through the wormholes of an eclectic universe.
Manalith		Set off on a calm and beautiful adventure exploring a vast mystical island in search of the lost Manaliths. Walk, climb, swim, and glide through valleys, woods, caverns, and coves discovering the island’s secrets as you go.
Lofty Quest		Lofty Quest is a narrative-driven hidden object adventure game where you search and explore beautiful, hand-crafted 3D dioramas to topple an evil King.
Edge Of Survival		Escape to a relaxing, survival sandbox surrounded by wildlife and nature. Scavenge materials and craft tools to turn your base into a warm, well-supplied home. Survive by fishing, hunting, cooking, and growing your own food.
Aery - Dreamscape		In Aery - Dreamscape you play as a bird like spirit who can enter the minds of other people in order to explore their thoughts, their secrets and their imagination. Experience the feeling of flying, immerse into beautiful and atmospheric landscapes and enjoy the unique storytelling of the game… ​
Gebub’s Adventure		Gebub finds himself in a large peaceful world, filled with colorful orbs and many creatures who need his help.
Dream #46		Chill exploration, contemplative ride game with a boat.
Lumini		A long-forgotten species, a hostile planet and a journey of discovery! Welcome to the world of Lumini – split and reform your swarm, evolve and discover new abilities to bring the Lumini back to their former glory…
Hiiro		Hiiro is a 2D platform game focused on ambient exploration and puzzle solving. Discover a grand world filled with mysterious artifacts and forgotten ruins. Become immersed in relaxing gameplay and meditative music. Remain observant as you unravel an explanation for your solitude.
Summer Valley Hike		Embark on a soul-soothing journey through the captivating Summer Valley. Leave your worries behind and let the beauty of this peaceful world envelop you. Summer Valley Hike is your ticket to a serene escape from the chaos of everyday life.

The results could be better here, too. There’s lots of issues with the results. Many of these games, including the top result, aren’t first person. Some of them aren’t 3D. But at least they all have a relaxing atmosphere and seem to be exploration focused.

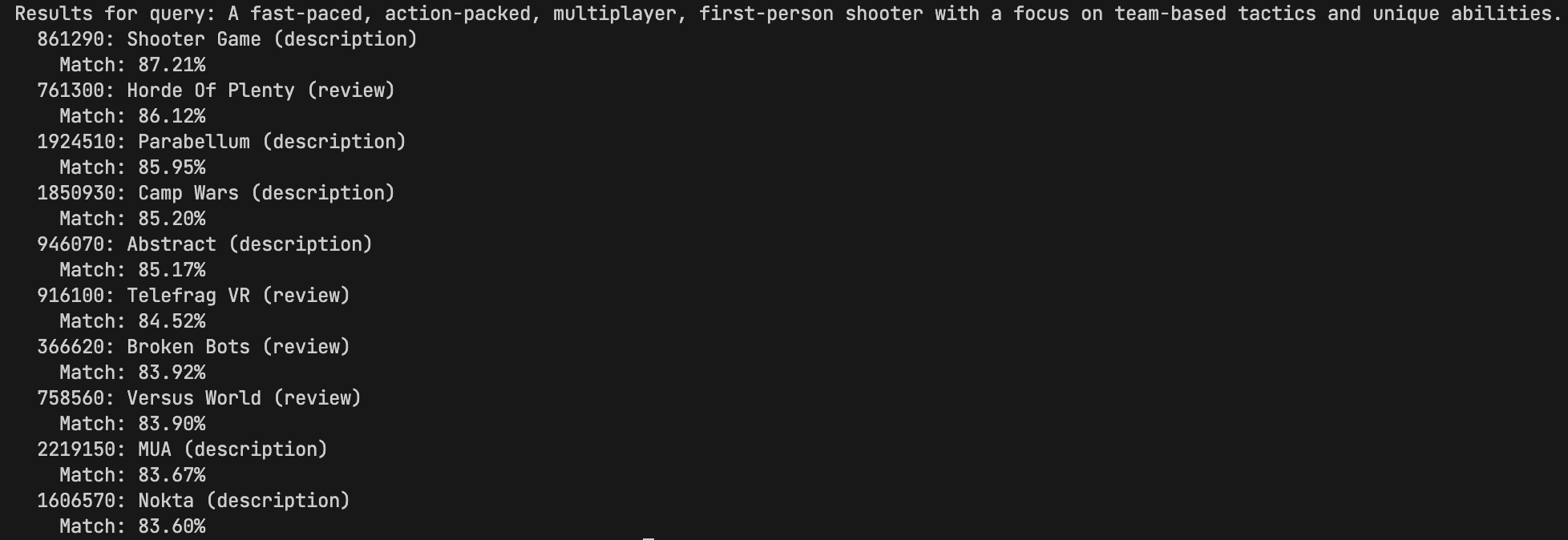

Query 3 - “A fast-paced, action-packed, multiplayer, first-person shooter with a focus on team-based tactics and unique abilities.”

Results Table (click to expand)

Title	Banner	Description
Shooter Game		Shooter Game is a Multiplayer FPS . Fight in various maps with different weapons in both single and team death matches .
Horde Of Plenty		In this action-packed twin-stick shooter, construction worker Ron Mayhem’s beloved pet, Puffy, a rather round and yellow puffer fish, has been captured by the forces of evil. Slay the hordes, collect mad loot, and bring Puffy back!
Parabellum		A semi sci-fi online PVP FPS shooter game with multiple maps, various weapon categories to master, incredibly fast paced movement with cool futuristic jetpack and jumppads around the map. Pickup armors and take control over enemy spawn to completely annihilate them
Camp Wars		First-person shooter, science fantasy. Slime Weapons. No deaths.
Abstract		Abstract is a third person, cooperative or player versus player online action game set in an evolving sci-fi world. Yes, we have rockets and lasers! Yes, we have kill-streaks! Of course we have zombies! Why not?
Telefrag VR		Telefrag VR is a hellishly fast-paced shooter with visceral movement and combat mechanics. Dash, shoot, and teleport around unique arenas that feature impossible geometry where there is no right side up and death can come from any direction.
Broken Bots		Bestow double fire rate to your comrade or bastardize your enemy with reverse controls! Broken Bots is arcade style multiplayer robot warfare where players dish out power-ups to teammates & glitches to foes. Customize weapons, passives, & skills then battle it out in CTF, Team Deathmatch & KOTH!
Versus World		Welcome to Versus World! Shoot, stab, snipe, and ‘splode your opponents to victory in this fast-paced multiplayer FPS. Here, the afterlife of a respawning immortal is seasoned by an up-down crouch.
MUA		This is a team online battle game. Use various characters to win the battle!
Nokta		Nokta is an online competitive FPS game that aims to give players fun and unique experience.

Again, many issues with this list. First, a positive. They’re at least all related to shooting things 😊. However many of these games aren’t first person, and not many of them have any form of unique abilities.

A separate issue is that a fair number of these games feel very…low-effort. I don’t want to be too harsh, but some of these appear to be just simple asset flips. I wonder if it might be because the prompt here used very common marketing terms like “action-packed” and “fast-paced”, so the model returned very generic-appearing games. Either way, I’m not sure if the bad results are because Steam is just full of generic games, or if the model could be doing something better.

Conclusion

So, how did it go? Well, I think it suffices to say that the results could be better. But on the bright side, throughout writing this blog series I’ve been able to identify a few areas where I think I can improve the results.

The results aren’t completely useless, though. I’ve shown this to a couple people, and while they agree the results aren’t amazing, they were also able to find some niche games they hadn’t heard of before and were interested in. So I think there’s at least some promise here.

Enough promise, at least, that I wanted to put it on the internet and write a blog series about it 😊. Even if things don’t work great here, maybe someone else can learn something and make a better next version.

So, now that we have something that works (vaguely), the next step is to show someone else and get some feedback. These days, that means making a web app of some kind.

The first step in making a web app is to create an API to retrieve data from the database. That’s what I’ll be covering in the next post.
