Weeping Angel Effect in Godot Engine

Godot Version: 4.0.3 .NET
Difficulty: Easy - Intermediate
GitHub Repository: Completed tutorial here

Related Project: Statue (Concept)

Introduction

I’ve recently been working on implementing some game concepts in the Godot game engine. One of the things I normally do when messing around with a game engine is try to recreate one aspect of a game I helped make in college, Stonewick Manor.

One of the core game mechanics of that game was a little cherub statue that followed you around. But there’s a catch, it can only move when you aren’t looking at it. The idea was, naturally, inspired by Dr. Who’s Weeping Angels.

Let’s try to recreate this kind of effect in Godot!

Tangent about Stonewick Manor

I wanted to provide a little insight as to how this effect was accomplished the first time I tried to implement it in college. It doesn’t really have much to do with Godot (so feel free to scroll past), but it does highlight just how far game dev tools have come over the past 10 years.

Fun fact: My lame claim to fame is that Markiplier actually played Stonewick Manor on his channel back in 2013. You can watch that video here. Fair warning, the game looks and plays like a student project from 2013, haha.

Our very first attempt at implementing this effect was to do a dot product between the player’s facing direction and the statue’s current location. We checked to see if the product was lower than a certain value. If it was below that threshold, we knew that the statue was located within the player’s field of view.

However, we felt this approach was lacking. There’s a few issues with it, but our main complaint was that you could effectively pacify the cherub just by looking in its direction through walls (remember this for our implementation later!). We wanted something a little more robust than that.

In the final version of Stonewick Manor, we accomplished this effect by rendering the frame two times, with a whole pass dedicated to figuring out what’s on-screen. We felt we could get away with rendering everything twice, because as a college game the art wasn’t exactly very demanding on the hardware.

On the second render, we would render everything but the statue in black to a texture. This was mainly intended to set up the z-buffer to quickly reject rendering the cherub, which we then rendered in a pseudorandom color (derived from its handle ID).

Finally, we checked the texture to see if any non-black pixels, or non-zero values, existed within it. If we did find any, the values we found told us which character was currently visible. This way, we could have multiple statues in a level, and we knew when it was safe for each statue to be moving. Not that we ever actually used that feature, if I recall correctly, but it was there!

Stonewick Manor was made with a custom-written game engine in C++ and using DirectX. As part of the implementation, I wrote a little bit of assembly to check the texture for non-black pixels (non-zero values). It turns out that repne scasb was way faster than what the compiler output (but probably not as fast as SSE2 would have been, if I had been aware of how to use it).

I was very proud of my hand-crafted optimization at the time, we had a visual profiler that showed exactly how much time was saved. But these days, I feel compilers would probably do something like that optimization for you automatically.

And much like how compilers have drastically improved (to the point of writing optimized assembly for you), so too have off-the-shelf game engines improved (to the point of implementing visibility calculations for you).

This tutorial will be using the Godot engine’s built-in visibility heuristics to determine when our object is visible. No complicated math or handcrafted assembly required!

The Godot Way

Step 1 - Create the object that moves offscreen

To begin, create a new scene which will contain the object that will be moving behind the player’s back.

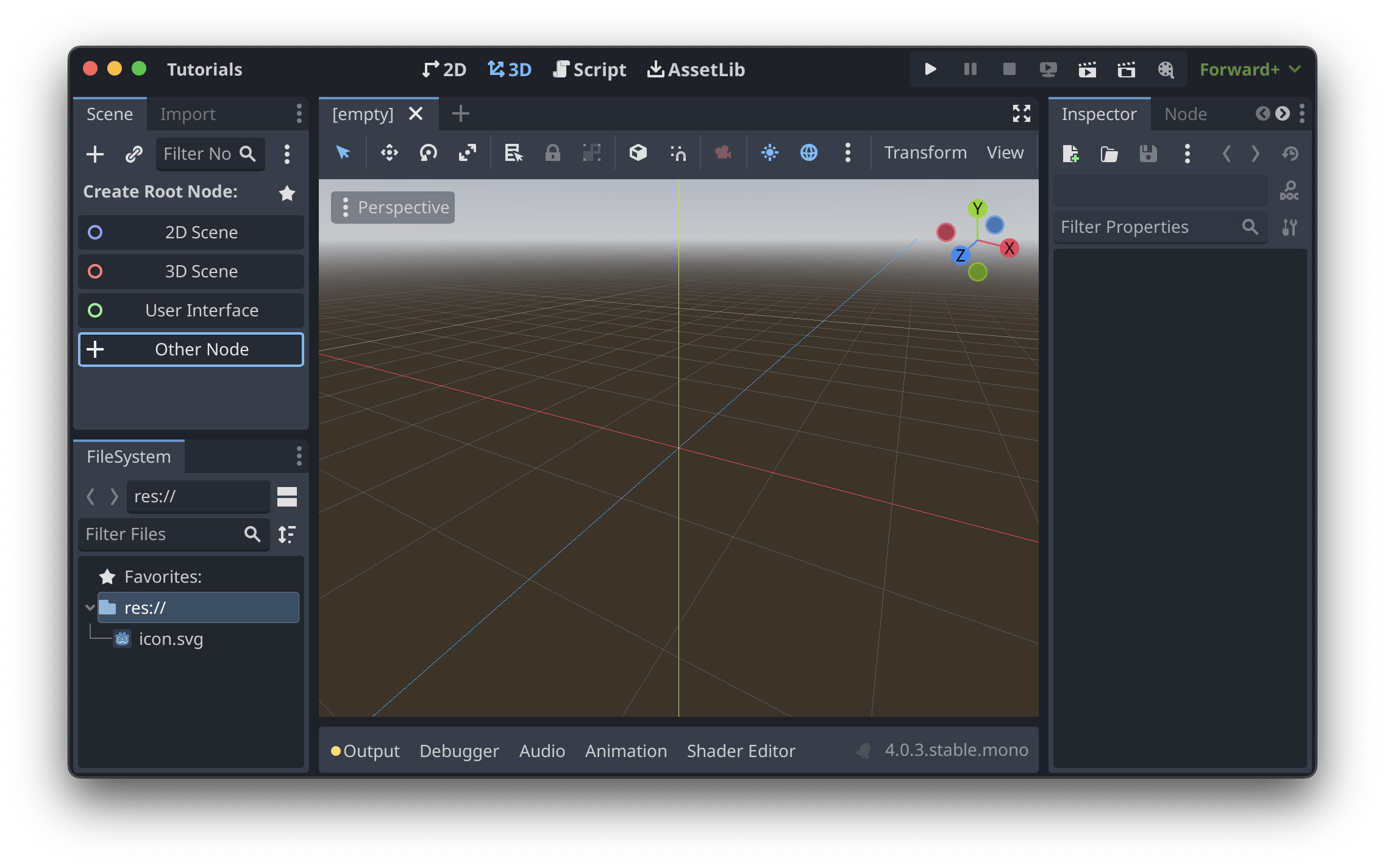

When creating the root node, select “Other Node” and create a CharacterBody3D. A CharacterBody3D is a node that is used to represent a character in a 3D game. It has a few useful properties, such as a velocity property that can be used to move the character around.

Create the root node, and change the name to something more appropriate than CharacterBody3D, e.g. Statue. For this tutorial, we’re just going to make a sphere that moves itself around offscreen, so I’ll name mine Ball.

Godot should now be warning you that you need to add a CollisionShape to the object. A CollisionShape is a node that represents the shape of an object in the game world. This is for physics collisions only, the visibility calculations use a separate shape.

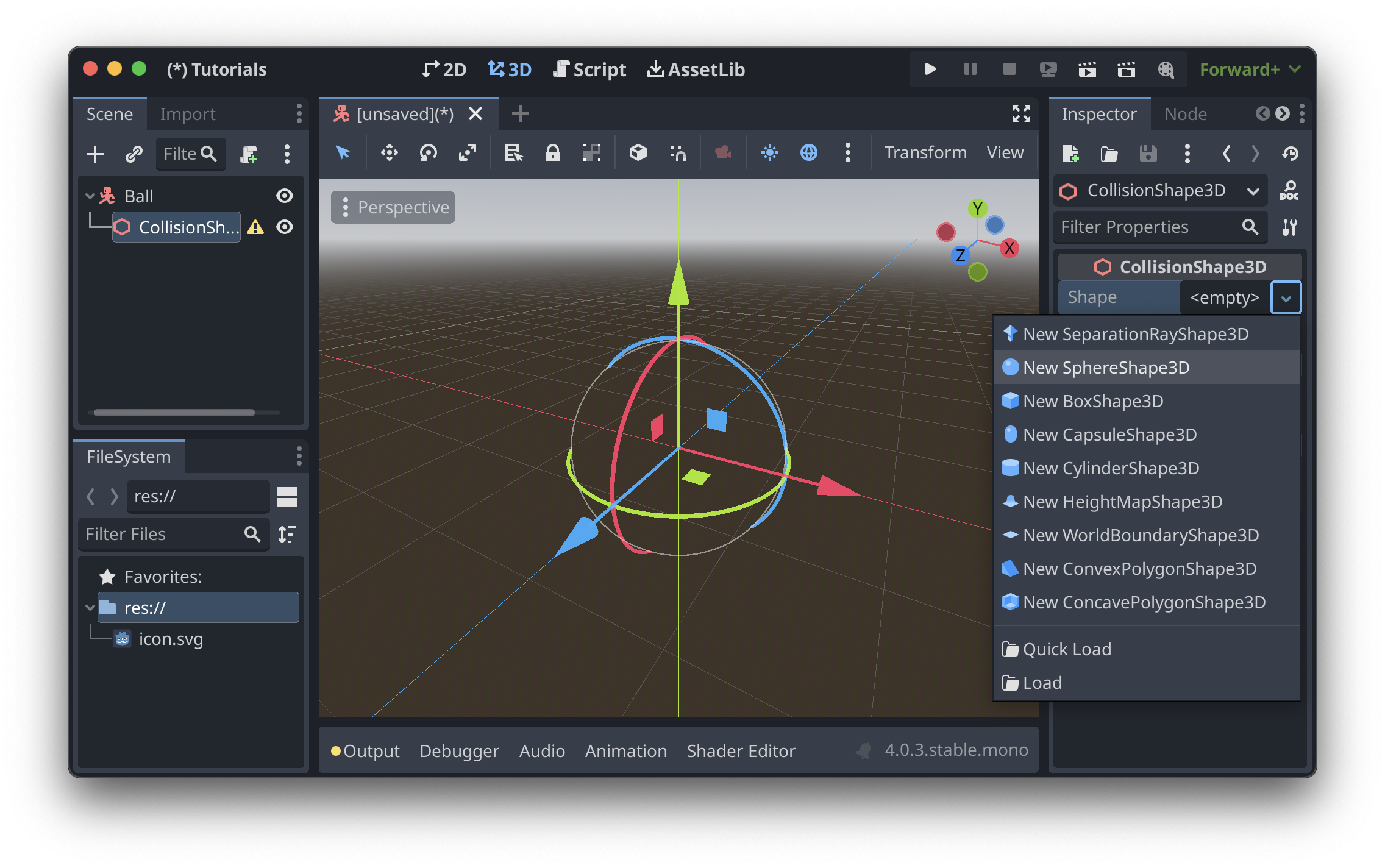

Add a CollisionShape3D to the object, and in the right-hand side menu create a new shape for the collision. What you should use depends on what kind of object you’re going to be applying this effect to. To our ball, we’ll add a SphereShape3D.

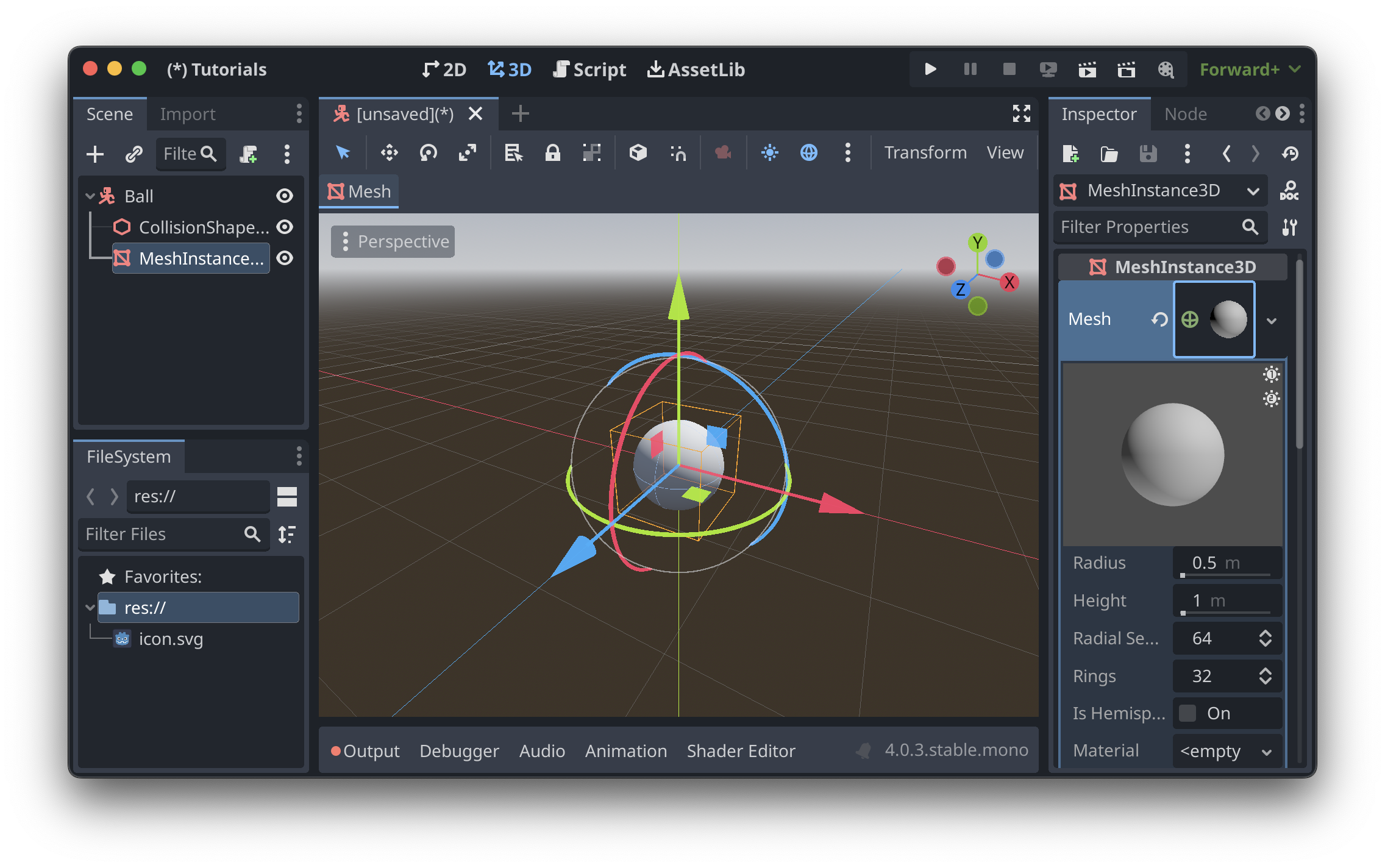

Now that we have a body and shape, we need to give it some kind of visual representation. Add a MeshInstance3D to the ball, and in the right-hand side menu create a new SphereMesh. Or if you’re using your own model, you can load that instead.

And finally, we need to add a VisibleOnScreenNotifier3D to the ball. You might be able to guess its purpose. This is the node that will tell us when the object is (possibly) visible on-screen. We’ll use this to determine when the object should be moving.

“Possibly” because the visibility heuristics are not perfect. They are designed to be used for culling, which means they will err on the side of assuming the object is visible even when it may not be, as we’ll see and fix later.

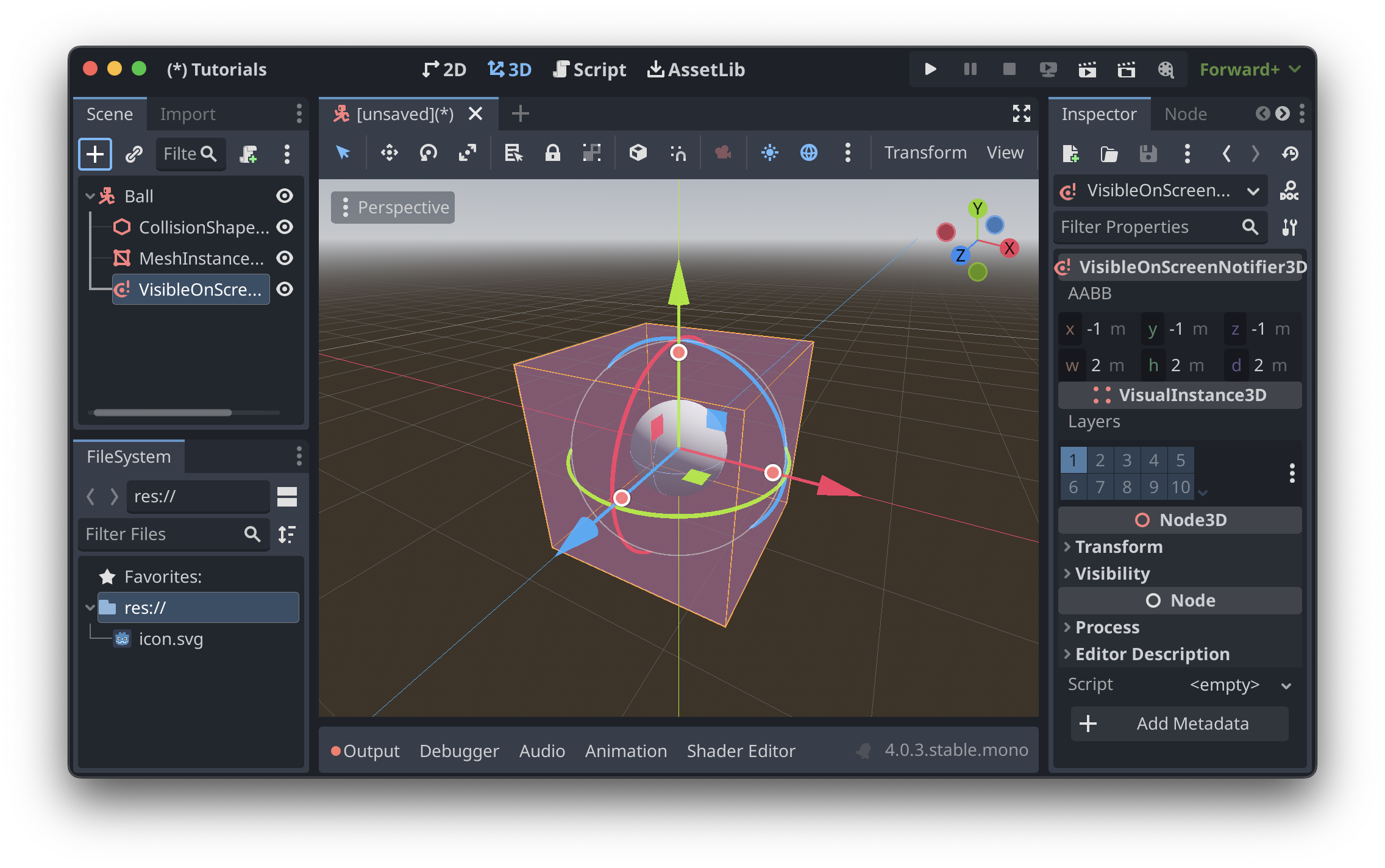

You’ll notice the default shape for the visibilty notifier is a cube, and not a sphere like the object we made. This is because Godot uses Axis-Aligned Bounding Boxes for the visibility heuristics. As of Godot 4.0, there is no way to change the shape of the visibility notifier, so we’ll have to make do with a cube.

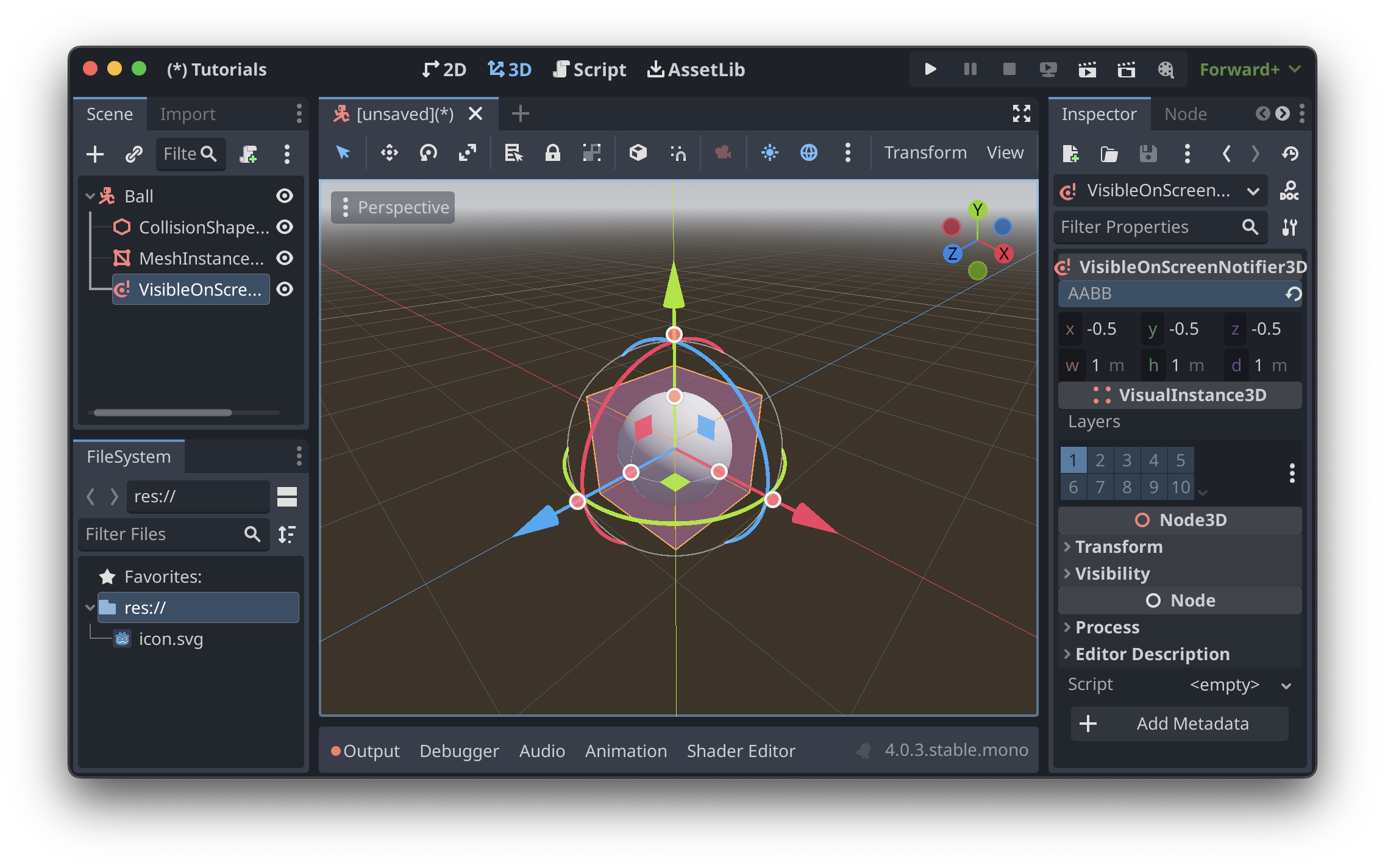

Adjust the size of the cube to be closer to the size of the object. This will be a manual process if you are using a custom model, but if you’re using a generated shape then you should be able to calculate the size of the box.

Note: If you make the size of the AABB to exactly fit the object within, you may notice that you can see the shadow of the object moving off-frame. If this is undesirable for your scenario, you should make the AABB large enough to encompass the object’s shadow as well.

Save the object, and let’s make the script.

Step 2 - Create the script

Now that we have the object created, we need to add a script to it. This script will be responsible for moving the object around when it is not visible on-screen.

For this tutorial, I will be showing you how to do this in C#, but the same principles apply to GDScript as well.

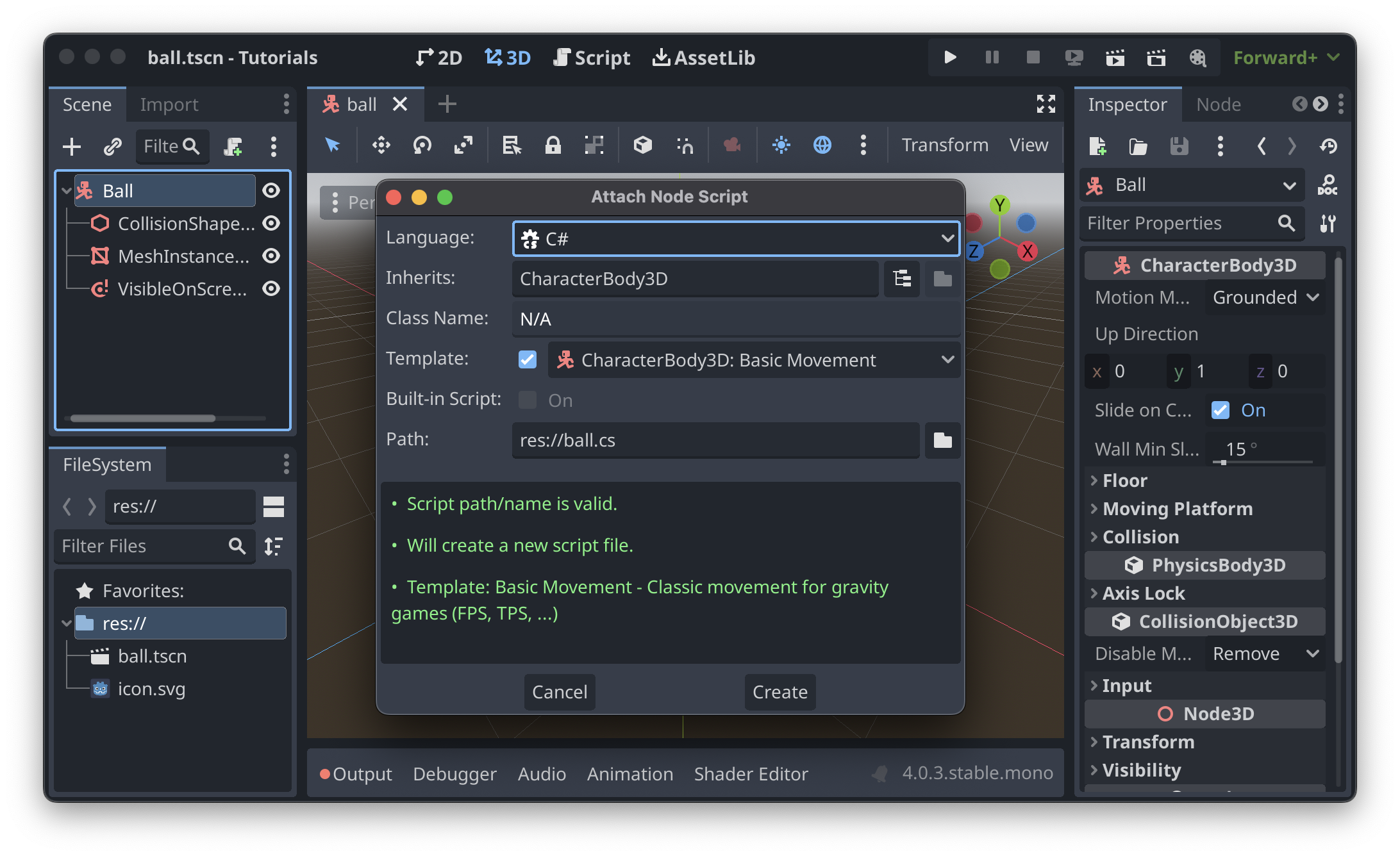

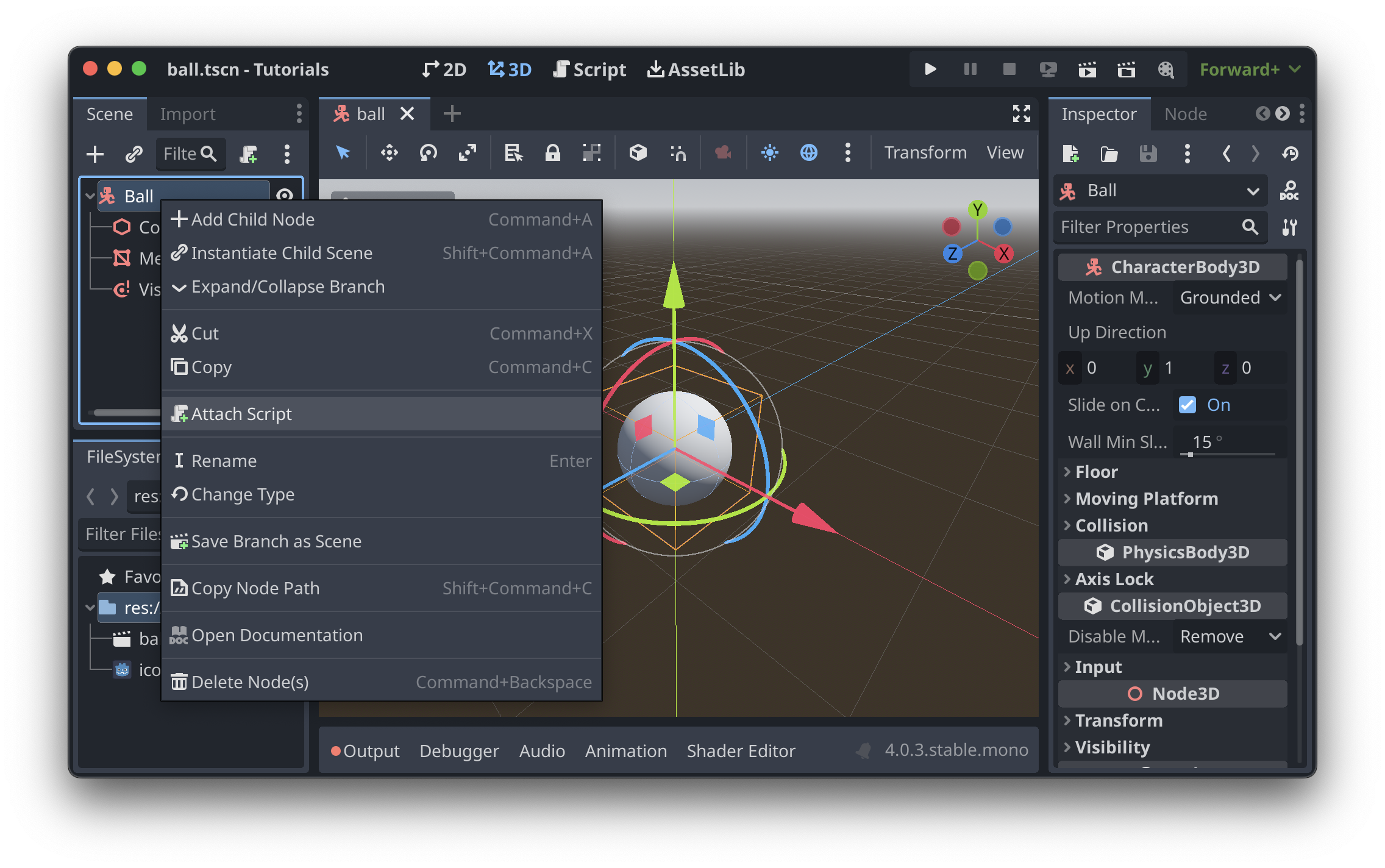

Right click the object and select “Attach Script”.

Change the language to C# (or don’t), and save the script.

Note: If this is the first C# script you’re making for this project, make sure to create the solution file, too. You can do this by going to Project > Tools > C# > Generate C# Solution in the top menu. If you don’t do this, your scripts won’t be compiled and nothing will work.

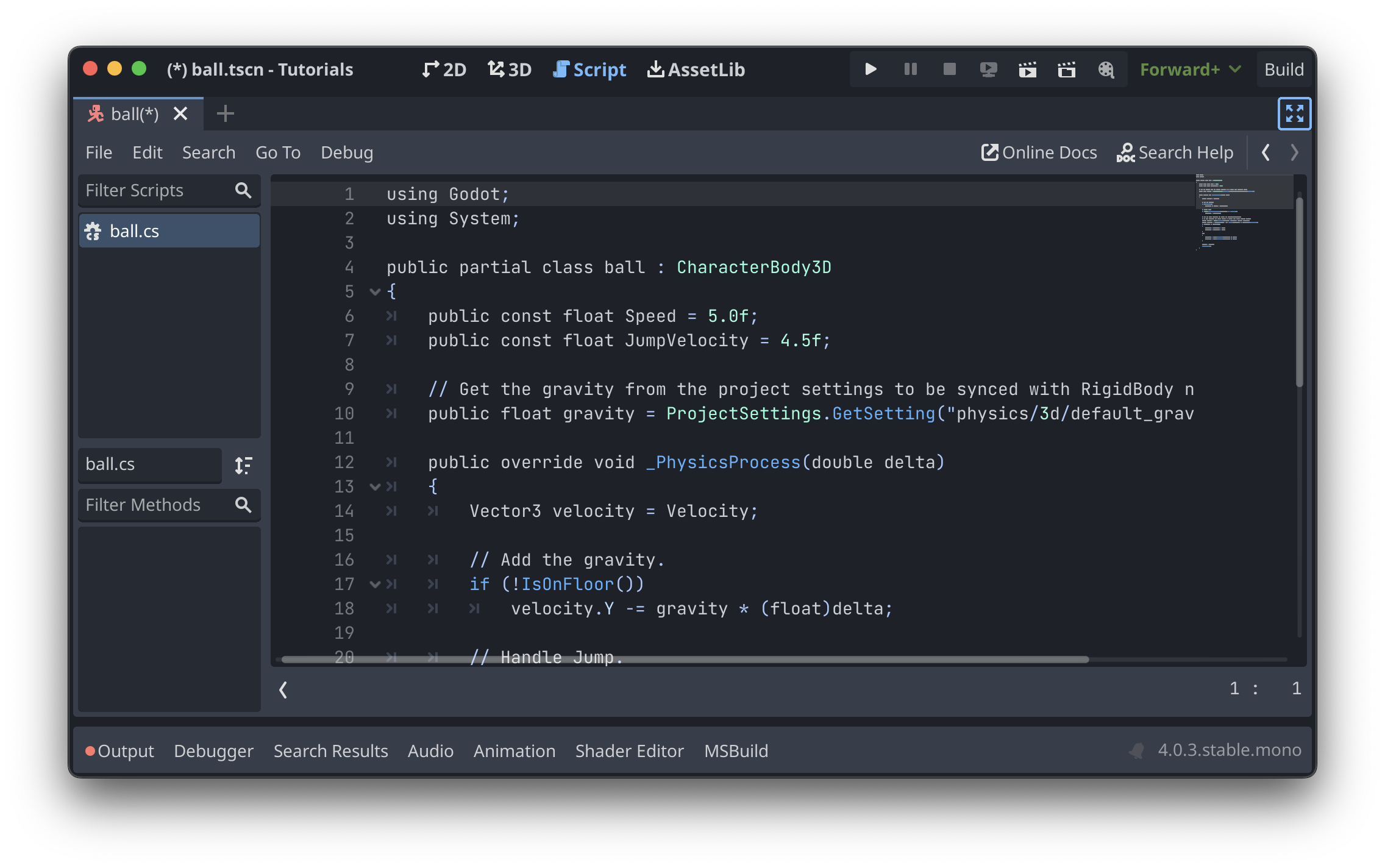

By default, the script will be created with a template specific to CharacterBody3D, which contains some code we won’t need. Remove code in the _PhysicsProcess function until it looks like this (or just copy and paste this code):

public override void _PhysicsProcess(double delta)
{
    Vector3 velocity = Velocity;

    // Add the gravity.
    if (!IsOnFloor())
        velocity.Y -= gravity * (float)delta;

    Velocity = velocity;
    MoveAndSlide();
}

Add a new private member to the class to hold a reference to this object’s VisibleOnScreenNotifier3D, and create a _Ready function that sets it:

private VisibleOnScreenNotifier3D visibleOnScreenNotifier;

public override void _Ready()
{
    visibleOnScreenNotifier = GetNode<VisibleOnScreenNotifier3D>("VisibleOnScreenNotifier3D");
}

Now in _PhysicsProcess you can check whether or not the object is visible on-screen:

public override void _PhysicsProcess(double delta)
{
    Vector3 velocity = Velocity;

    // Add the gravity.
    if (!IsOnFloor())
        velocity.Y -= gravity * (float)delta;

    // vvvv New Code vvvv

    if (!visibleOnScreenNotifier.IsOnScreen())
    {
        // TODO: Move the object
    }
    else
    {
        // Stop the object.
        velocity.X = velocity.Z = 0;
    }

    // ^^^^^^^^^^^^^^^^^^^

    Velocity = velocity;
    MoveAndSlide();
}

And that’s really just about it. All that’s left is determining where the object should move when it’s off-screen.

To keep things simple, let’s make the object move in circles. We can keep track of the total time elapsed since the object was created, and use that to determine the angle of movement.

Add a private member to keep track of the time elapsed, and increment it in _PhysicsProcess:

private double totalTime = 0.0f;

public override void _PhysicsProcess(double delta)
{
    totalTime += delta;

Now we can replace the TODO:

    if (!visibleOnScreenNotifier.IsOnScreen())
    {
        // Move in circles based on total time.
        Vector3 moveDirection = new Vector3(Mathf.Cos((float)totalTime), 0, Mathf.Sin((float)totalTime));
        moveDirection = moveDirection.Normalized() * Speed;

        // Don't overwrite y velocity, so the object can still fall.
        velocity.X = moveDirection.X;
        velocity.Z = moveDirection.Z;
    }

And now we’re actually done! You should now have a ball that moves in circles behind your back. Let’s test it out.

Note: If you have a game of your own all ready to go, you should be able to drop this object in and watch it work. Skip Step 3 and move onto Step 4 to check out an improvement you can make to the effect!

Step 3 - Make it playable

While we have an object that probably does something pretty cool, we can’t actually see it in action yet. Let’s create a scene and a player-controlled object to bring it to life.

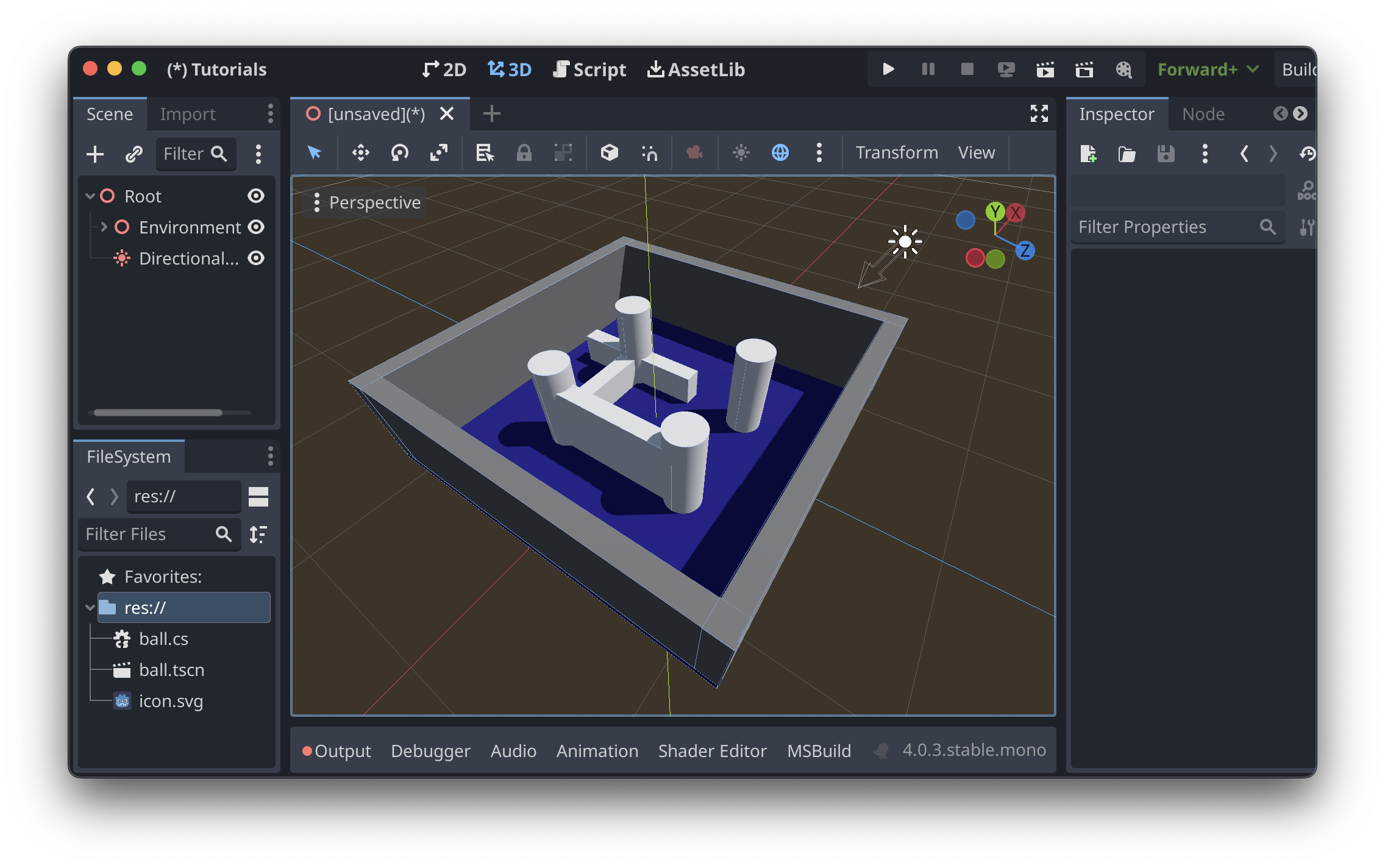

Create a new scene, and create a simple environment for the player to walk around in, and to have something for the ball to hide behind. Godot has pretty good built-in tools for whiteboxing a level, which is what I’ll be using.

When creating your whiteboxed level, make sure to parent all your environment objects under a single ’environment’ node. This will be important for later.

Make sure all your walls and floors contain all three StaticBody3D, CollisionShape3D and MeshInstance3D nodes. Pillars (cylinders) that are wide enough to occlude the entire object are particularly fun to play with.

You may also want to add a light with shadows enabled to the scene. And for extra credit, you can assign materials to some of the objects so it’s not all flat white surfaces. We’ll add a camera and player-controlled object after the level is created.

This is the level I made:

For the player-controlled object with built-in camera, I’ve found FPSControllerMono to be an okay starting point, but as of writing this the plugin has not yet been updated for Godot 4.0 and fails to compile cleanly, so you may need to make some fixes.

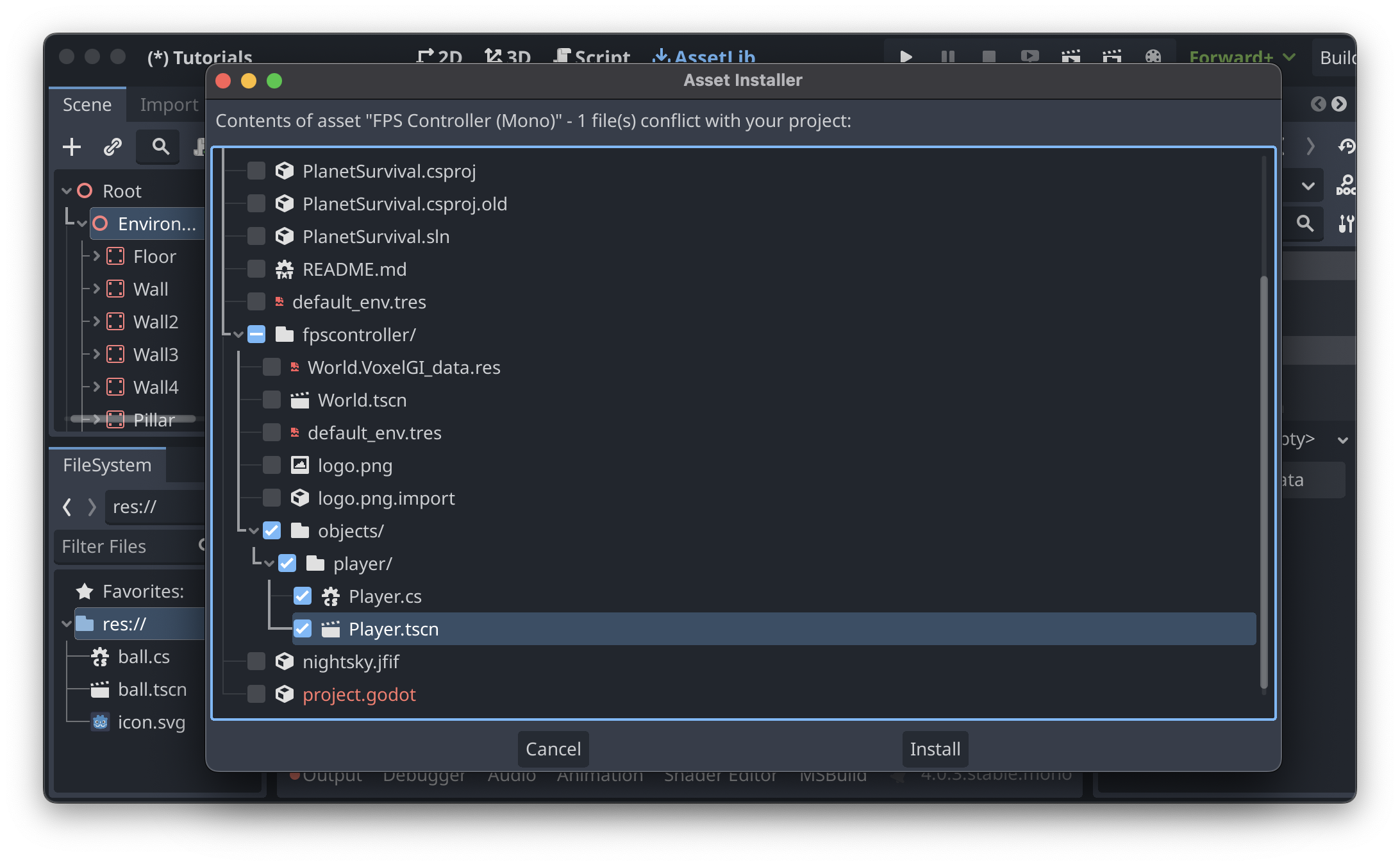

You can use the AssetLib tab on the top, search for FPS and install it into the project. When installing, you should import only the Player.tscn and Player.cs files, you won’t need anything else.

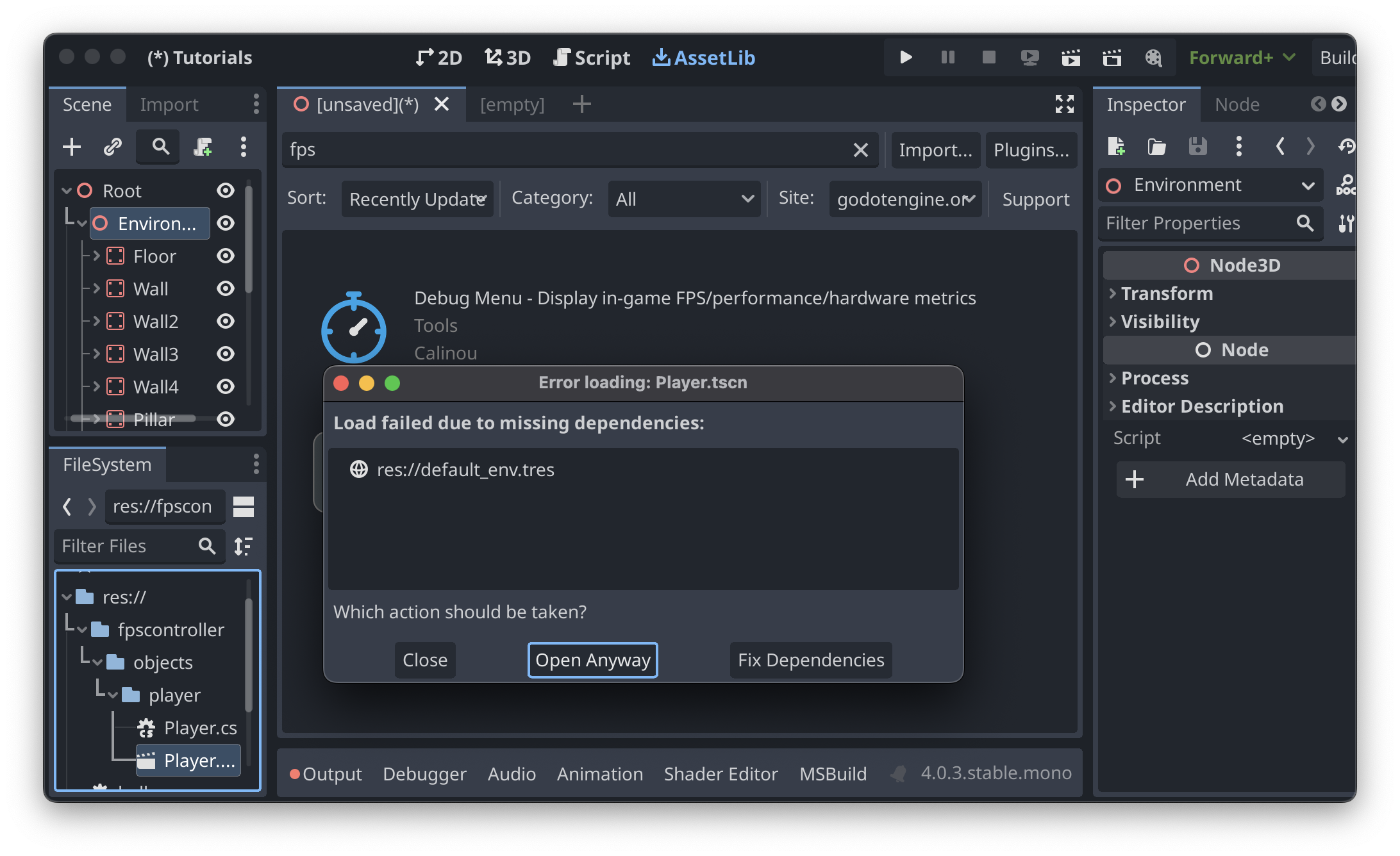

Note: If you attempt to open the Player.tscn scene, you’ll get an error about a missing dependency:

This error is unimportant, and can be ignored. It’s complaining that we didn’t import one of the environment files that was stored in the plugin we downloaded. The environment contains configuration for the camera with settings such as bloom, SSAO, and other post-processing effects. We don’t need this for our purposes, so we can just ignore it.

Next, set up input bindings for your project. You can do this by going to Project > Project Settings in the top menu, then selecting the Input Map tab.

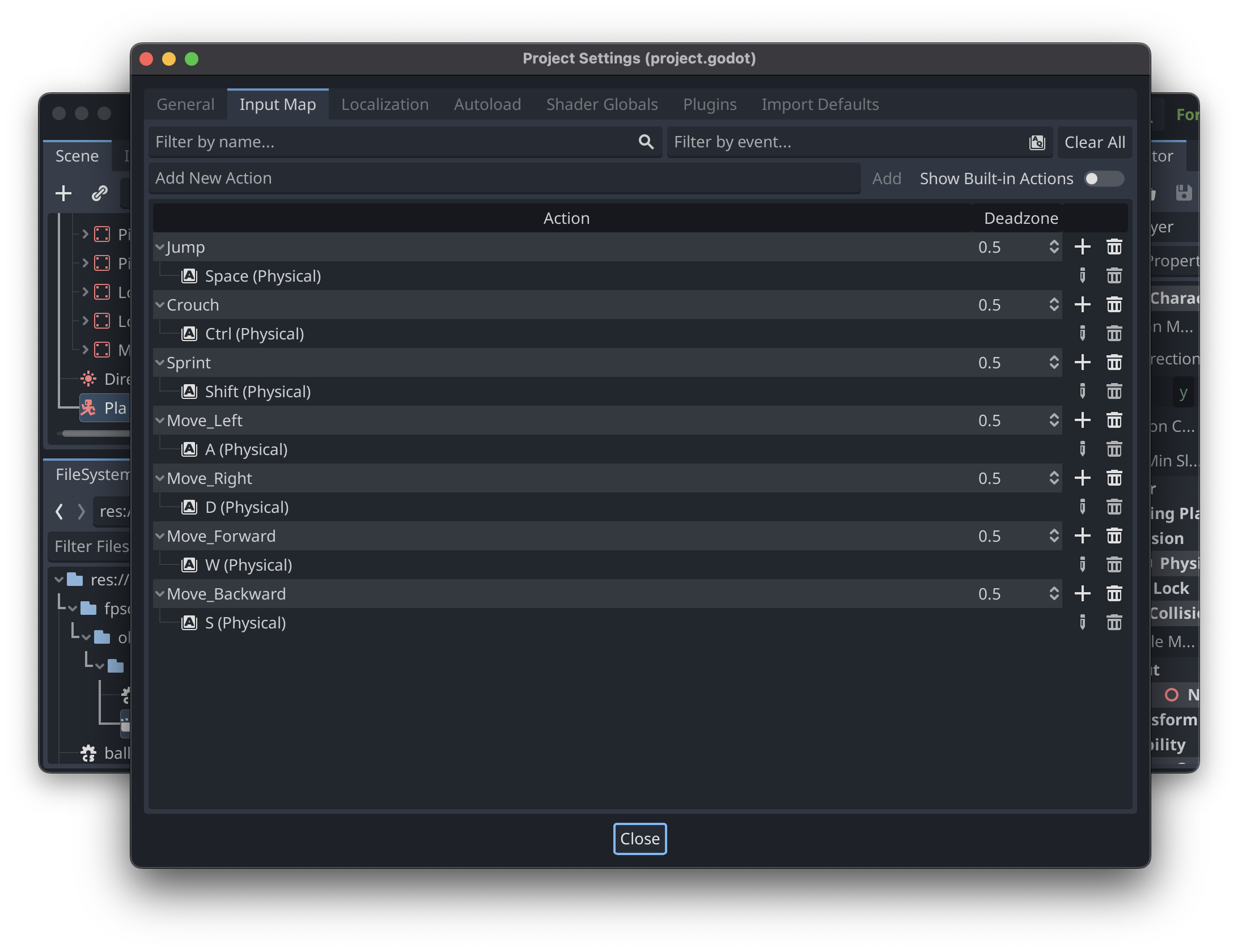

At a minimum, you will need to define the following actions before you can play the game (you can bind them however you like):

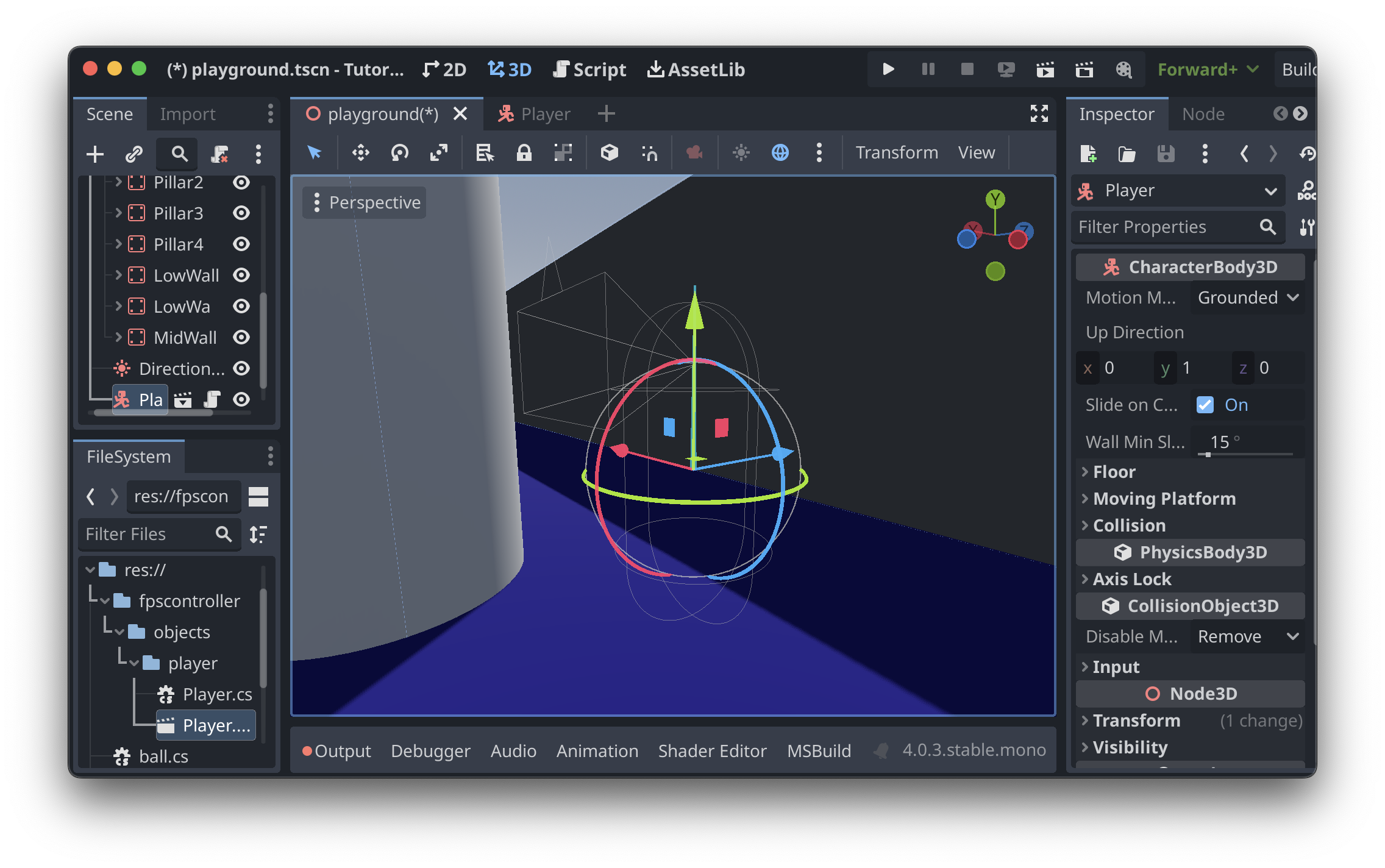

Now import the player into your environment by dragging Player.tscn into the scene. Make sure to move the player out of the ground if necessary.

Now you can hit the “Play” button in the upper right hand corner and walk around your environment.

Add a few of the balls to the scene in the same way you added the player, and run the game again. You should be able to see, or rather shouldn’t see, the balls moving while you look away.

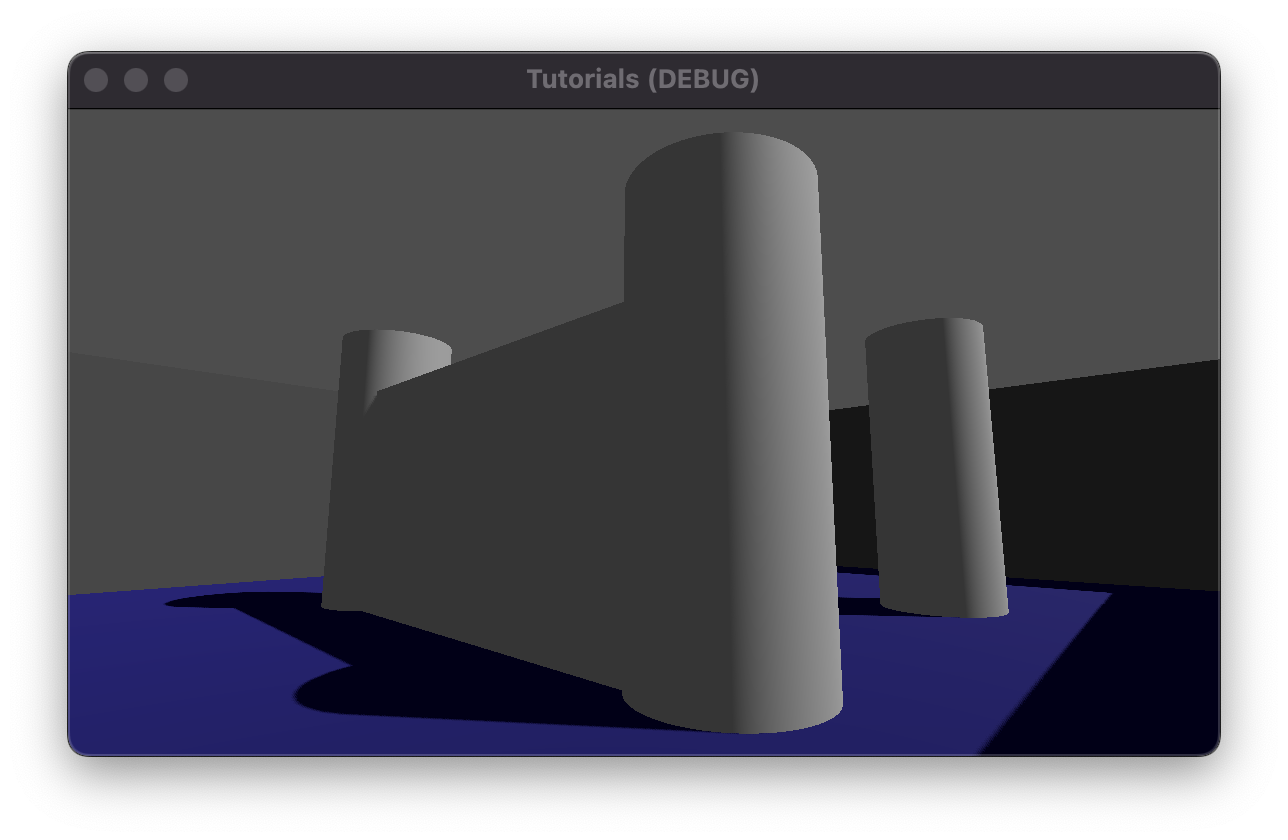

But if you play around with it enough, you’ll notice that the balls don’t move when they’re occluded by walls:

Can we improve it?

Step 4 - Occlusion Culling

Godot uses some heuristics inside VisibleOnScreenNotifier3D to determine if an object is visible or not. However, with the default settings, it does not take into account occlusion by other objects. If you enable occlusion culling for your project and set up the environment correctly, you can get a much more impressive effect.

Note: Occluders (the objects doing the blocking) should be static objects only. While it is technically possible for dynamic objects to be occluders, it is not recommended. There’s lots of overhead processing that needs to be done every time the occlusion map changes.

If dynamic occlusion must be done, then you should avoid marking moving objects as occluders at all costs. This will absolutely tank your framerate. You should instead limit yourself to enabling/disabling static occluders during runtime.

For more information, read the Godot Docs about the topic.

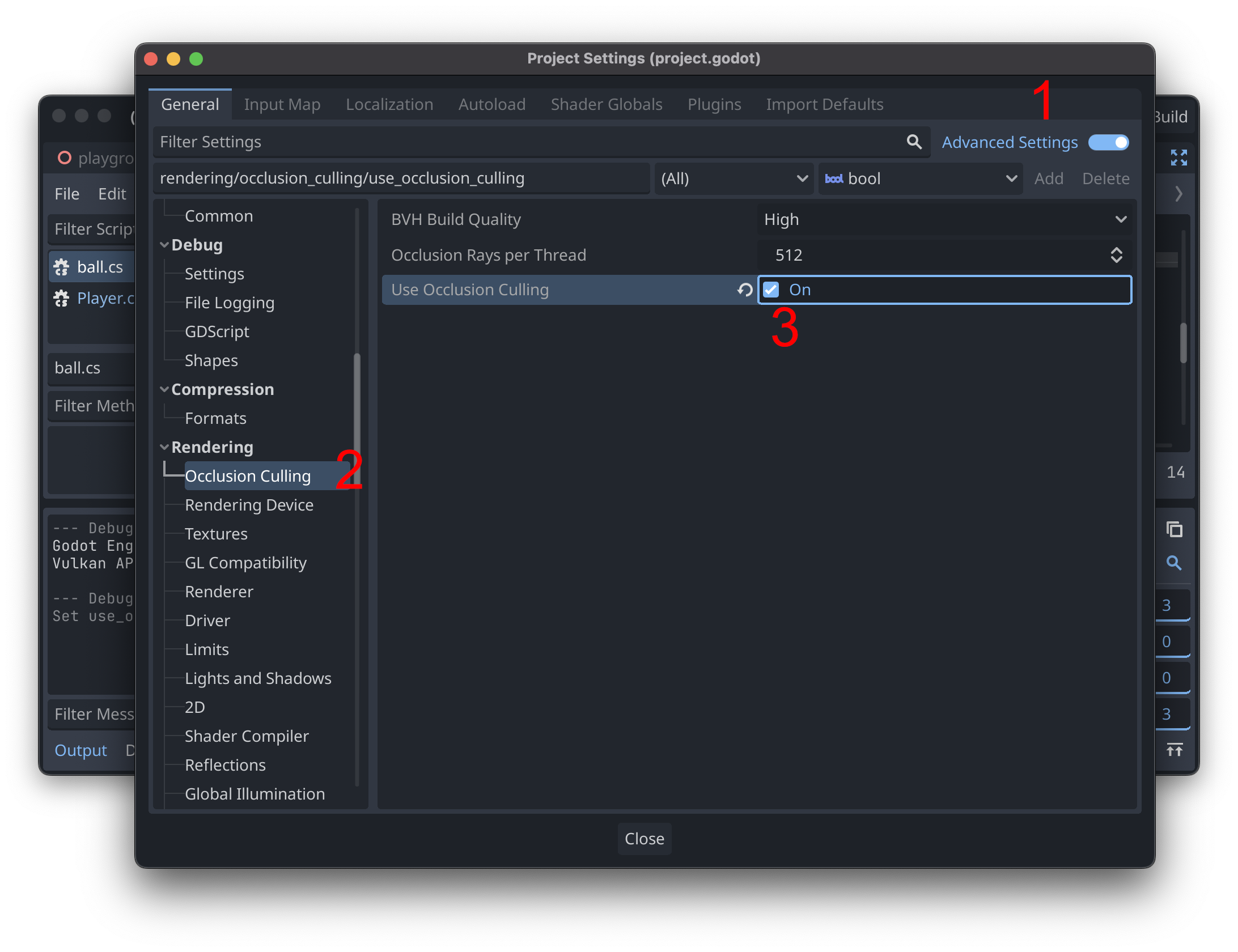

To enable occlusion culling, go to Project > Project Settings in the top menu, then enable Advanced Settings. Go to Rendering/Occlusion Culling and set Use Occlusion Culling to On.

Now in your environment, select the ‘Environment’ node you created earlier, and add an OccluderInstance3D node as a child, alongside your environment objects.

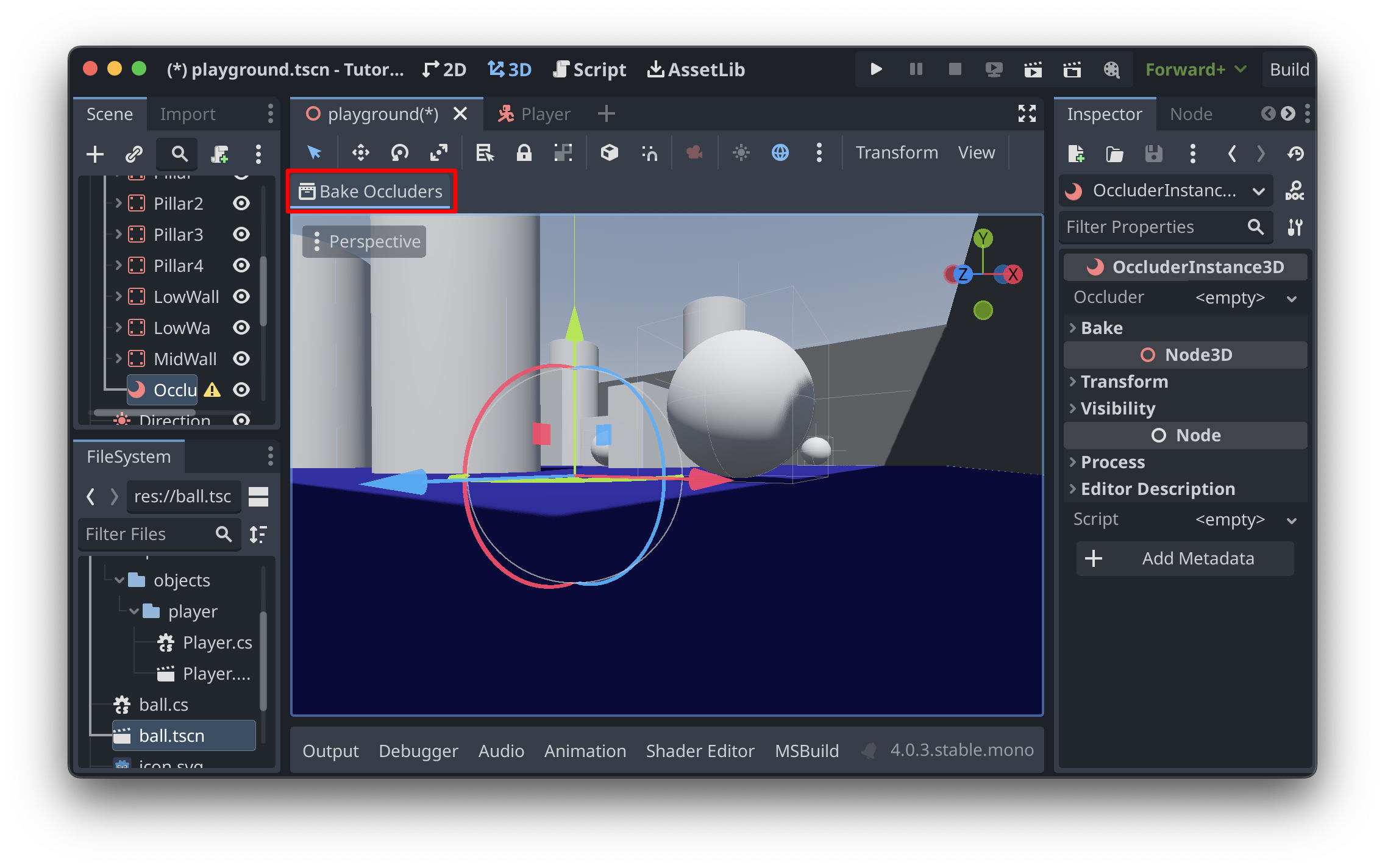

This is the node that creates the occlusion map for the scene. With the node selected, you’ll notice a new button on your viewport: Bake Occluders.

Click the button to generate the occlusion map. You will be asked to save the resulting file somewhere in your project folder.

Run the game again, and you should notice an improvement in the effect:

Conclusion

With occlusion culling enabled, you should now have a pretty impressive-looking Weeping Angel effect in your game! If you want to see the full source code for this completed tutorial, you can find it on my GitHub.

By now you know that the real star of the show here is VisibleOnScreenNotifier3D which enables a lot of cool things. There’s plenty other things you can do with it in addition to the Weeping Angels.

For example, you might re-arrange a room’s furniture by disabling one set of objects and enabling a different set of objects. With visibility notifier nodes placed on both locations, you will know for a fact when it can all be done off-camera.

You can also inverse the effect. Make an enemy that dislikes being looked at. It gets angrier the more it’s on-screen, and starts running at you as soon as you see it. Look away to keep them at bay.

I haven’t looked into this at all, so I assume this probably won’t actually work, but I wonder if it might even be possible to use this node for some kind of stealth mechanic. Put cameras on some guards and a visibility notifier on the player to see if they’re visible to the guard. I’m sure there’s way simpler ways to implement stealth than that, but I wonder if there’s anything interesting you could do with this implementation of it.

There’s a lot of possibilities here, and I’m sure you can come up with some cool ideas of your own! I’d love to see some new games out there that make use of this effect. If you make something cool, let me know!
